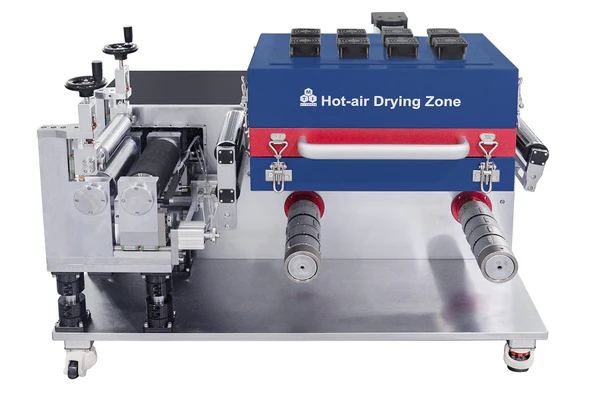

MSK-AFA-200 is a Roll-to-Roll continuous coat with 6 optional coating heads or head combinations for film coating with a small footprint for materials research labs. This system integrates the functions/ features of reeling in & out, slurry feeder, coating blade, baking oven, and final electrode winding (reeling in). The system is glovebox compatible.
Types of Coating Heads and combinations available:
-
- Doctor Blade Coating
- Reverse Comma Blade (Transforming)
- Micro-Gravure Coating
- Slot Die Coating
- Slot Die + Doctor Blade Coating
- Slot Die + Reverse Comma Blade Coating
For bilayer slot die coating, it is possible to have a customized slot die head with dual channels: MSK-PWHM-CP
Coating methods:
continuous or intermittent
Coating width:
up to 160 mm (depending on coating head)
Coating length:
up to 500 m (depending on the coating method and coating head)
Coating thickness:
1 – 200 μm (depending on the coating method, viscosity of the slurry and feeding speed)
-
- Reverse Comma Blade / Doctor Blade Coating : 30 ~ 200 μm
- Slot Die Coating : 5 – 200 μm
- Micro-Gravure Coating : 1~50 μm
Heating :
Forced convection hot air (IR + UV heating is available upon request)
-
- Convection chamber: 500 mm length
- Drying Temperature: 130 °C
- Temperature Accuracy: ± 1 °C
- Temperature uniformity: ± 5 °C
- Customized design of dual heating chambers is also available
Coating Speed:
0 – 200 mm/minute
Reeling/Unreeling shaft:
75 mm (ID), mechanical expanding shaft
Reeling/Unreeling Roller:
200 mm (OD)
Power requirements:
208 – 240 VAC, 50/60 Hz, Single phase, 3 KW
Dimensions and weight :
1000 mm (L) x 600 mm (W) x 630 mm (H), 400 kg
Optional functionalities (upon request):
-
- slurry feeders:
- For Dr blade, reverse comma blade, and microgravure coating methods, peristaltic pump MSK-155with 2 L volume can be considered
- For slot die, syringe pump MSK-151-L500 and screw pump MSK-156can be considered
- atmospheric plasma cleaning (example : GSL-1100XPJF )
- dual filtration system
- magnetic de-ironing filtration system
- slurry feeders:
For more information please visit MTI website or see the utilization video below:
https://mtixtl.com/products/msk-afa-200
https://youtu.be/7AgyYMRLMDs?list=TLGGWGVj2tCTF8MyMjAxMjAyNQ
